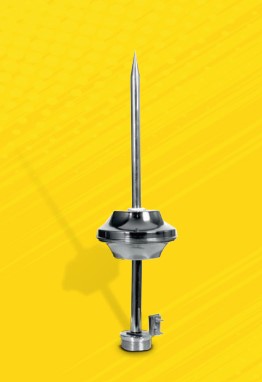

UMBRAECO ESE Air Terminal
- NF C 17-102 (2011) designed & tested
- Non-Electronic ESE
- No use of battery or external power source
- 304L (Inox) Stainless Steel – suitable for any environmental conditions
- Delta T, ΔT=15 µSec (Triggering Time Advance)
- 100 kA (10/350 µSec) Lightning Impulse Current tested
- CE certified
- Suitable for various down conductors Round/Flat (Bare & Insulated), Cables, etc
| Protection radius as per NF C 17-102 (2011) | ||||
|---|---|---|---|---|
| Mast Height h (m) | Level I Very High | Level II High | Level III Medium | Level IV Standard |
| 2 | 13 | 15 | 18 | 20 |
| 3 | 19 | 22 | 27 | 31 |
| 4 | 25 | 30 | 36 | 41 |
| 5 | 32 | 37 | 45 | 51 |
| 6 | 32 | 38 | 46 | 52 |
| 8 | 33 | 39 | 47 | 54 |
| 8 | 33 | 39 | 47 | 54 |
| 10 | 34 | 40 | 49 | 56 |
| 20 | 35 | 44 | 55 | 63 |
| 30 | 35 | 44 | 58 | 69 |
| 40 | 35 | 44 | 60 | 72 |
