Description

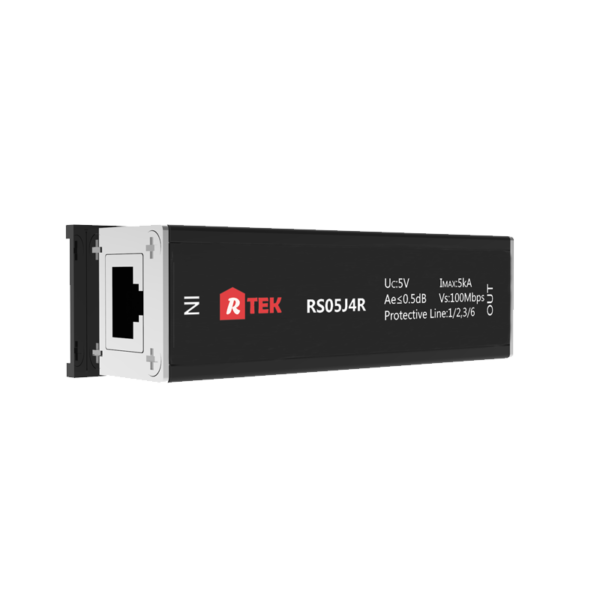

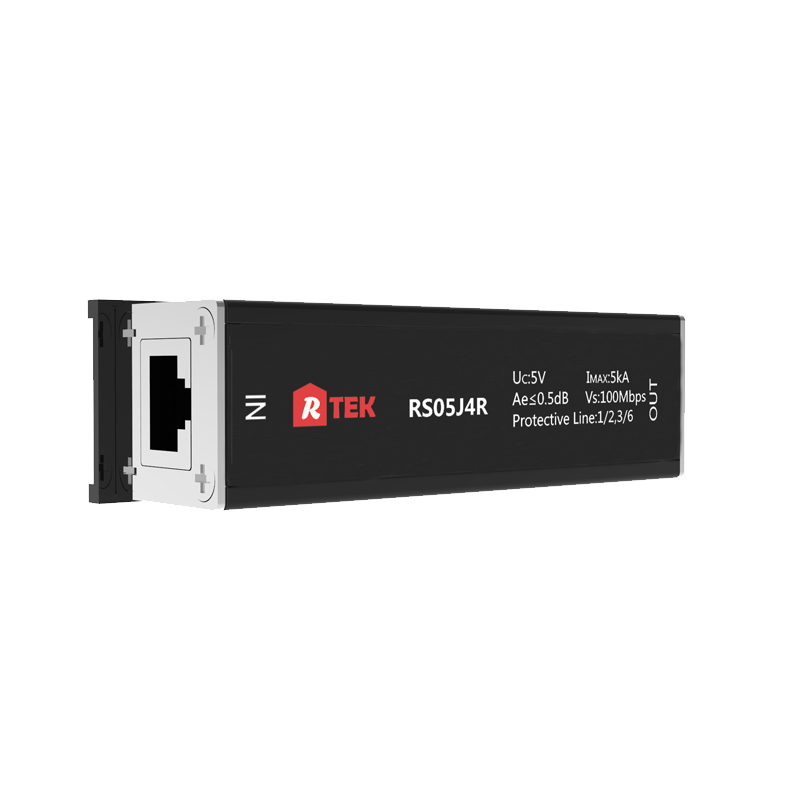

| Part Number | RS05J4R |
| Nominal Voltage (Un) | 5V |
| Max. continuous operating d.c. voltage (Uc) | 5V |
| Max. continuous operating a.c. voltage (Uc) | 3.5V |
| Rated load current (45℃) (IL) | 100mA |
| C2 nominal discharge current (8/20 µs) per line (In) | 2kA |
| Voltage protection level for line-line In C2 (Up) | 13V |
| Voltage protection level for line-PE In C2 (Up) | 600V |
| Voltage protection level line-line at 1 kV/us C3 (Up) | 40V |
| Voltage protection level line-PE at 1 kV/us C3 (Up) | 600V |
| Frequency scope for line-line | 0-1000Mbps |
| Insertion loss | ≤0.5dB |
| Approval | CE |
