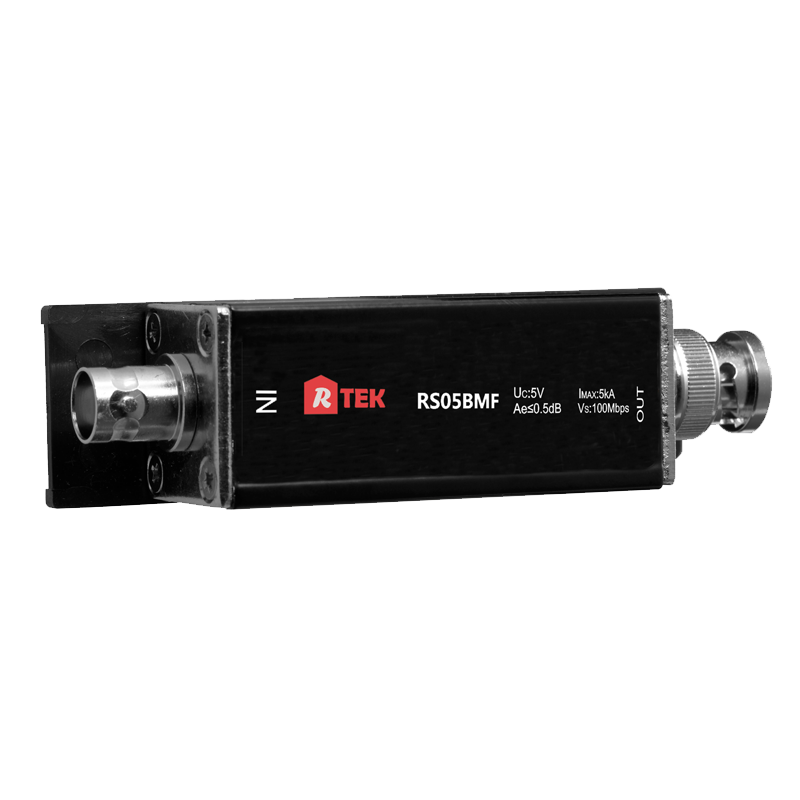

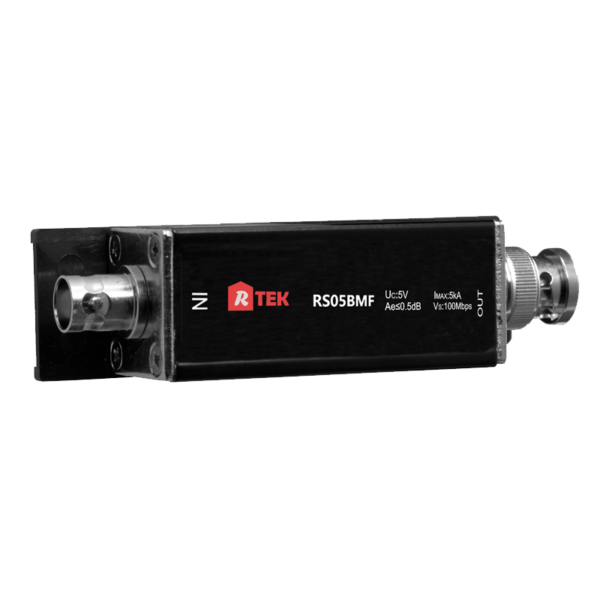

RS05BMF Compact SPD with BNC interface for protecting coaxial system

Category:

Description：Compact SPD with BNC interface for protecting coaxial system, like video and camera systems, and installation at the boundaries from LPZ 0B -2 and higher.

Features：

● High discharge capacity

● Fully shielded design

● Low insertion loss

● Protection for all lines

● Easy to replace

● DIN rail installation

Description

Part Number RS05BMF
Nominal Voltage (Un) 5V
Max. continuous operating d.c. voltage (Uc) 5V
Max. continuous operating a.c. voltage (Uc) 4.2V
Rated load current (45°C) (IL) 100mA
C2 nominal discharge current (8/20 µs) per line (In) 3kA
Voltage protection level for line-line In C2 (Up) 25V
Voltage protection level for line-PE In C2 (Up) 500V
Voltage protection level line-line at 1 kV/us C3 (Up) 20V
Voltage protection level line-PE at 1 kV/us C3 (Up) 600V
Frequency scope for line-line 0-10Mbps
Surge impedance 75ohm
