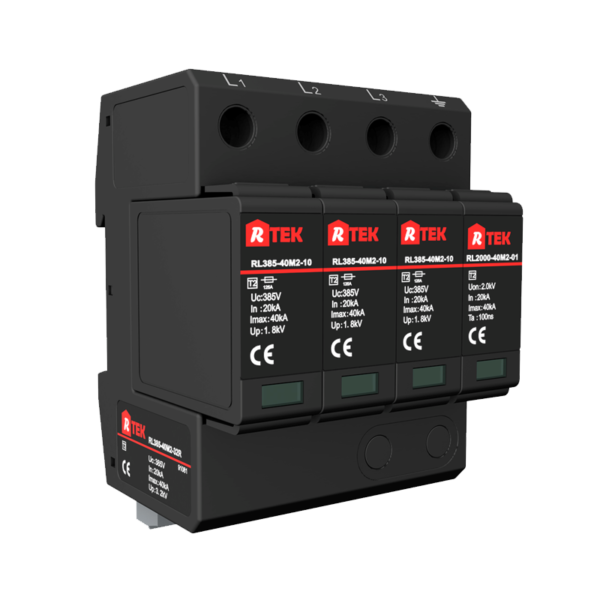

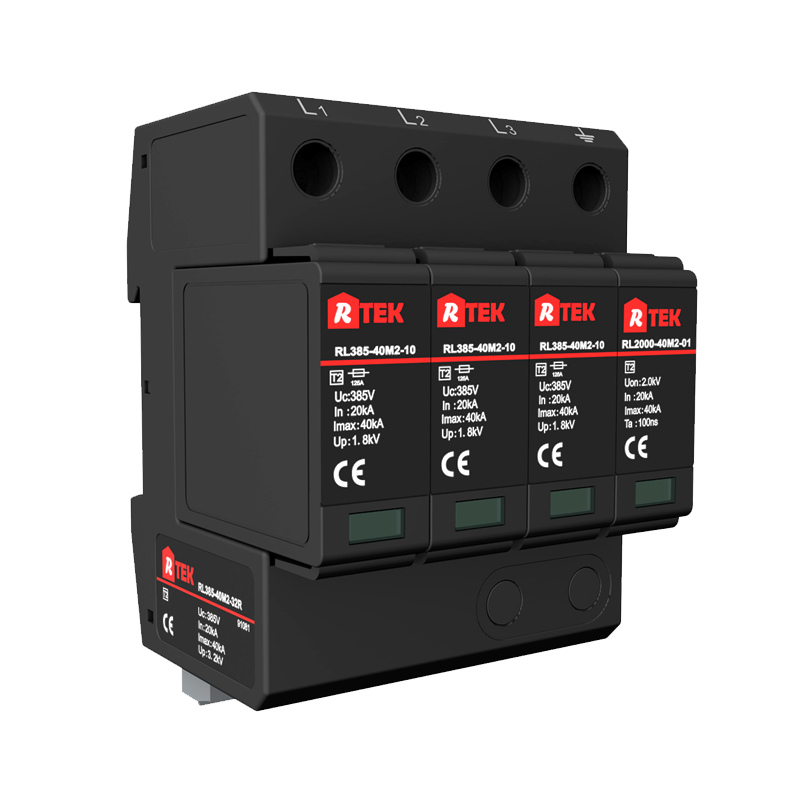

RL385(760)-40(25)M2-32R Type 2 /Class ⅡSPD(surge protective devices) with anti-vibration pluggable module

Category:

Description：DIN rail, Type 2 /Class ⅡSPD with anti-vibration pluggable module for use in TNC system at boundaries from LPZ 0B -1 and higher,and especially designed isolated module to prevent the harmonic wave interference.

Feature：

● Non-destructive screening technology for MOV

● CDGG technology for isolated module

● Reliable thermal disconnect device

● High discharge capacity

● Consisting of a base part and pluggable modules

● Easy replacing and anti-vibration due to module releasing
and locking system

● Visual and remote status indication

● Multifunctional terminals for connecting conductors and busbars

Description

Part Number RL385-40M2-32R RL760-25M2-33R
Nominal Voltage (Un) 230/400Vac 400/690Vac
Max. continuous operating voltage (Uc) 385Vac 760Vac
Nominal discharge current (8/20 µs) (In) 20kA 15kA
Max.discharge surge current (8/20μs) (Imax) 40kA 25kA
Voltage protection level (Up) 3.2kV 4.0kV
Voltage protection level for 5kA (Up) 1.5kV 3.0kV
Response time (tA) ≤100ns ≤100ns
Short circuit withstand capability (Iscw) 25kArms 25kArms
Temporary overvoltage (TOV) (Ut) 900V/5s 1200V/5s
Max. overcurrent protection ≤125A gL/gG ≤125A gL/gG
TOV characteristic Withstand Withstand
Approval CE CE
