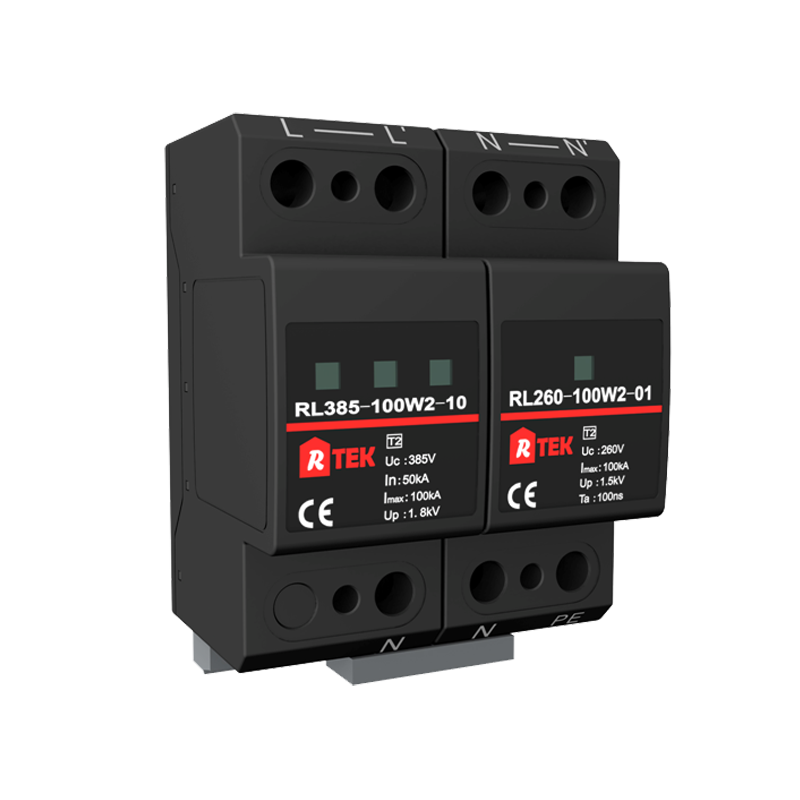

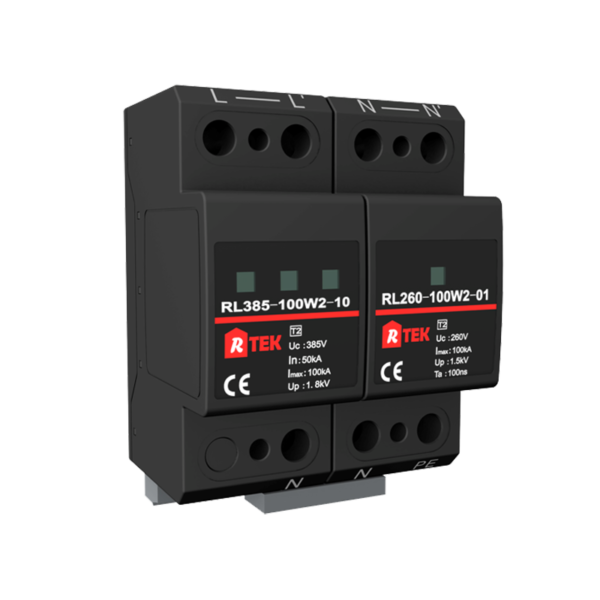

RL385-80(100 120)W2-11R surge protective devices with high duty MOVs

Description：DIN rail, Type2 /Class Ⅱwith high duty MOVs for use in system at boundaries from LPZ 0B -1 and higher.

Feature：

● Uniform current flow technology of MOV

● Non-destructive screening technology for MOV

● High discharge capacity

● Capable of protecting terminal equipment

● Visual and remote status indication

● Multifunctional terminals for connecting conductors and busbars

● DIN rail installation

Description

Part Number	RL385-80W2-11R	RL385-100W2-11R
Order No.	91009	91011
IEC Category /EN 61643	Class 2 /Type 2	Class 2 /Type 2
Technology	MOV	MOV
Nominal Voltage (Un)	230/400Vac	230/400Vac
Max. continuous operating voltage (Uc)	385Vac(L-N),260Vac(N-PE)	385Vac(L-N),260Vac(N-PE)
Nominal discharge current (8/20 µs) (In)	40kA	50kA
Max.discharge surge current (8/20μs)	80kA	100kA
Voltage protection level (Up)	1.6kV(L-N),1.5(N-PE)	1.8kV(L-N),1.5(N-PE)
Voltage protection level for 5kA (Up)	1.2kV	1.2kV
Response time (t_A)	≤25ns	≤25ns
Short circuit withstand capability(Iscw)	25kArms	25kArms
Temporary overvoltage (TOV) (U_t)	440V/5s	440V/5s
Max. overcurrent protection	≤200A gL/gG	≤200A gL/gG
TOV characteristic	Withstand	Withstand
Approval	CE	CE

Part Number	RL385-120W2-11R
Nominal Voltage (Un)	230/400Vac
Max. continuous operating voltage (Uc)	385Vac(L-N),260Vac(N-PE)
Nominal discharge current (8/20 µs) (In)	60kA
Max.discharge surge current (8/20μs)	120kA
Voltage protection level (Up)	1.8kV(L-N),1.5(N-PE)
Voltage protection level for 5kA (Up)	1.2kV
Response time (t_A)	≤25ns
Short circuit withstand capability(Iscw)	25kArms
Temporary overvoltage (TOV) (U_t)	440V/5s
Max. overcurrent protection	≤200A gL/gG
TOV characteristic	Withstand
Approval	CE
