Description
| Part Number | RL2000-60M2-02 |
| SPD Class | Class 2 /Type 2 |
| Turn-on Voltage | 2.0kV |
| Nominal discharge current (8/20 µs) (In) | 60kA |
| Lightning impulse current (10/350 µs) (limp) | — |
| Response time (tA) | ≤100ns |
| Approval | CE |

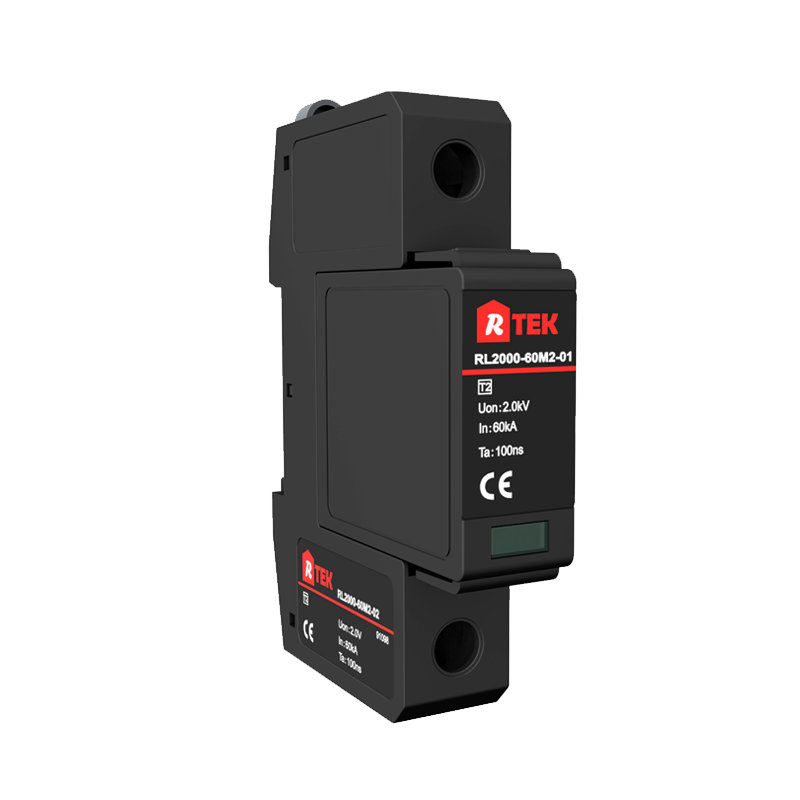

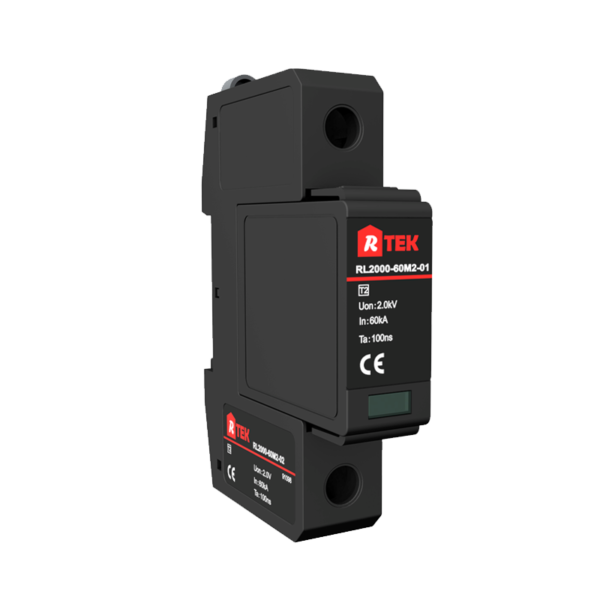

RL2000-60M2-02 Spark gap unit for isolating the harmonic wave interface
Description： DIN rail, Spark gap unit for isolating the harmonic
wave interface.
Feature：
● GDGG technology
● High discharge capacity
● Multifunctional terminals for connecting conductors and busbars
● DIN rail installation
