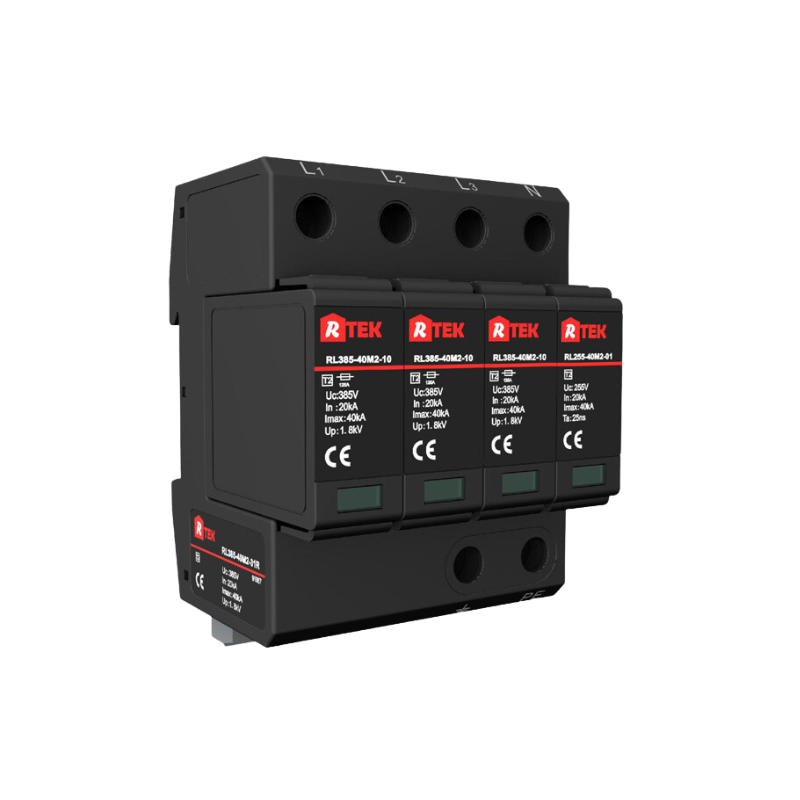

RL150(275 385 440)-40M2-40R Type 2 /Class Ⅱ SPD with anti-vibration pluggable module

Description：DIN rail, Type 2 /Class Ⅱwith anti-vibration pluggable module for use in 230/400 Vac TN-S system at boundaries from
LPZ 0B-1 and higher.

Feature：

● Non-destructive screening technology for MOV

● Reliable thermal disconnect device

● High discharge capacity

● Consisting of a base part and pluggable modules

● Easy replacing and anti-vibration due to module releasing
and locking system

● Visual and remote status indication

● Multifunctional terminals for connecting conductors and busbars

● DIN rail installation

Description

Part Number	RL150-40M2-40R	RL275-40M2-40R
Nominal Voltage (Un)	120/240Vac	230/400Vac
Max. continuous operating voltage	150Vac	275Vac
Nominal discharge current (8/20 µs)	20kA	20kA
Max.discharge surge current (8/20μs)	40kA	40kA
Voltage protection level (Up)	1.0kV	1.3kV
Voltage protection level for 5kA (Up)	0.6kV	1.0kV
Response time (t_A)	≤25ns	≤25ns
Short circuit withstand capability (Iscw)	25kArms	25kArms
Temporary overvoltage (TOV) (U_t)	180V/5s	337V/5s
Max. overcurrent protection	≤125A gL/gG	≤125A gL/gG
TOV characteristic	Withstand	Withstand
Approval	CE	CE

Part Number	RL385-40M2-40R	RL440-40M2-40R
Nominal Voltage (Un)	230/400Vac	230/400Vac
Max. continuous operating voltage	385Vac	440Vac
Nominal discharge current (8/20 µs)	20kA	20kA
Max.discharge surge current (8/20μs)	40kA	40kA
Voltage protection level (Up)	1.8kV	2.2kV
Voltage protection level for 5kA (Up)	1.3kV	1.6kV
Response time (t_A)	≤25ns	≤25ns
Short circuit withstand capability (Iscw)	25kArms	25kArms
Temporary overvoltage (TOV) (U_t)	440V/5s	500V/5s
Max. overcurrent protection	≤125A gL/gG	≤125A gL/gG
TOV characteristic	Withstand	Withstand
Approval	CE	CE
