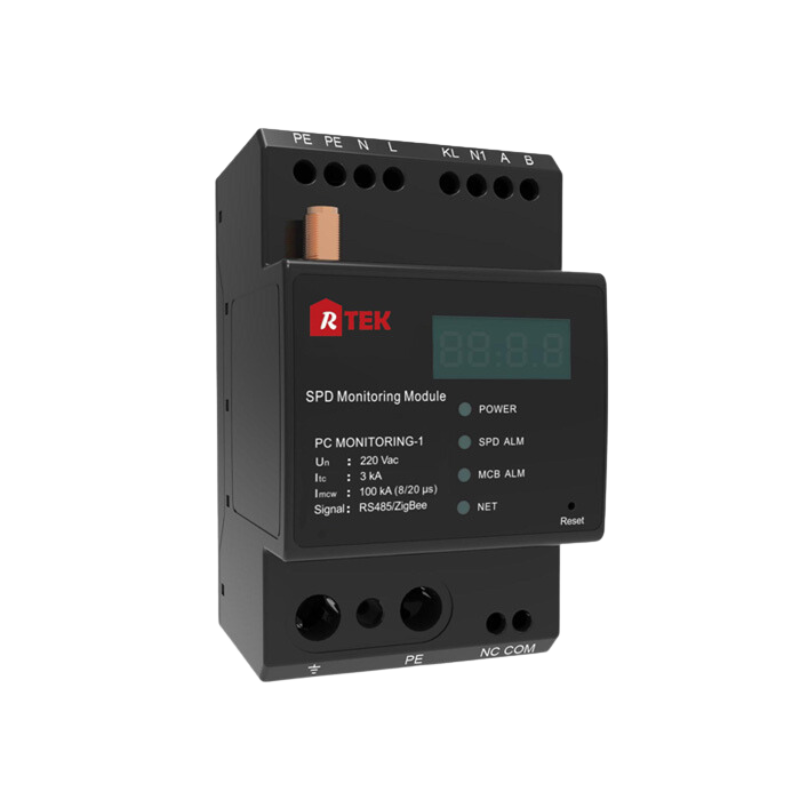

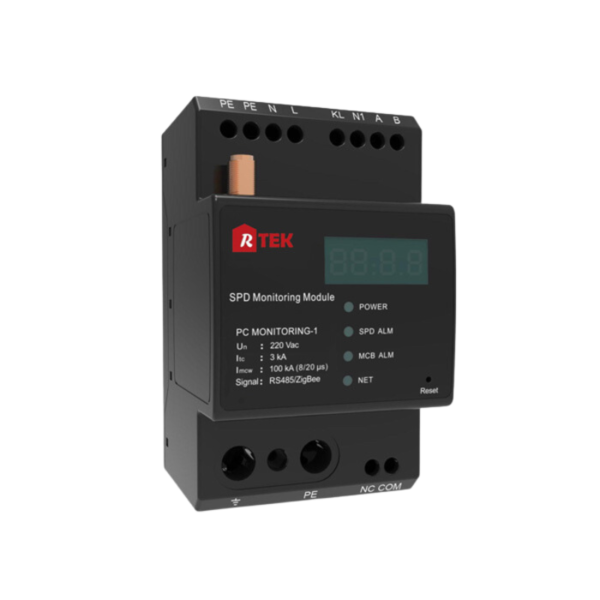

RC41 Lightning counter

Category:

Description： The product combines surge counting, SPD status monitoring and breaker status monitoring functions. All the data, as well as event time could be transmitted to command system by RS485. Its mainly used with SPD and surge protection cabinet.

Features：

● Sensor integrated

● Large memory, display up to 9999

● Bus Bar connection available

● 220 Vac power supply

● RS485 available

● Zig be available

● With memory function in case of power down

Description

Part Number RC41 RC42
Trigger current(8/20μs) 1.5-3kA 1.5-3kA
Memory(surge counting) 9999 9999
Power supply 220-250 Vac 220-250 Vac
Reset Software local reset
Method of mounting 35mm DIN rail 35mm DIN rail
Cross-sectional area(max) 2.5mm 2.5mm
Cross-sectional area(min) 0.5mm 0.5mm
stripping length terminals 0.7mm 0.7mm
Approval CE CE
