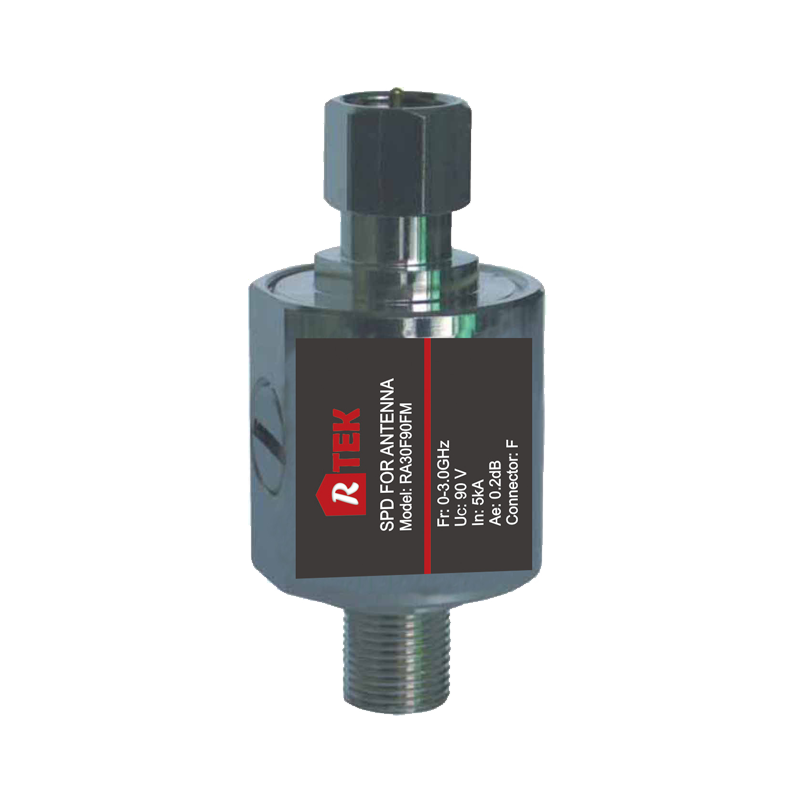

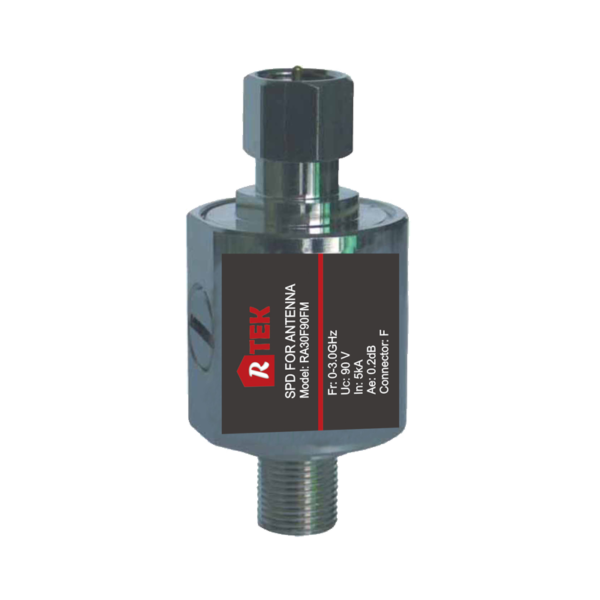

Summary:RA30F90FM is applied in 75Ω satellite and cable TV system, suitable for all common TV and satellite applications, installed at LPZ 0A-1 interface; designed according to IEC 61643-21; GB 18802.21; YD/T 1542.
Main character ：With exchangeable integrated gas discharge tube. Good discharge capacity, low voltage protection level. Wide frequency range, high performance transmission. Metallic housing F connection, easy for installation.
Application ：RA30F90FM is applied in 75Ω satellite and cable TV system and so on.
| Part Number | RA30F90FM |
| Rated voltage (max. continuous voltage) (Uc) | 60V |
| Rate load current(45℃) (IL) | 2A |
| Lightning impulse current (10/350)(Iimp) | 2.5kA |
| Nominal discharge current (8/20µs)(In) | 10kA |
| Voltage protection level at In (Up) | ≤ 600V |
| Voltage protection level at 1kV/µs (Up) | ≤ 40V |
| Frequency range(F) | 3000MHz |
| Max. output power(P) | 500W |
| Insertion loss(aE) | ≤ 0.2dB |
| Return loss (input/output)(aR) | ≥ 18dB |
| Surge impedance(Z) | 75Ω |
| Approval | CE |
