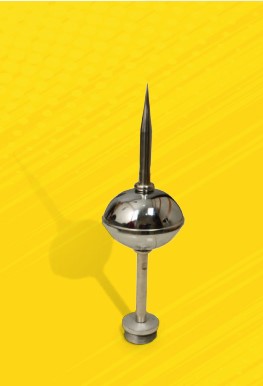

LYRA ESE Air Terminal
- NF C 17-102 (2011) designed & tested
- Non-Electronic ESE
- No use of battery or external power source
- 304L (Inox) Stainless Steel – suitable for any environmental conditions
- Delta T, ΔT = 10 µSec (Triggering Time Advance)
- CE certified
- Suitable for various down conductors Round/Flat (Bare & Insulated), Cables, etc
| Protection radius as per NF C 17-102 (2011) | ||||
|---|---|---|---|---|
| Mast Height h (m) | Level I Very High | Level II High | Level III Medium | Level IV Standard |
| 2 | 10 | 12 | 15 | 17 |
| 3 | 15 | 19 | 23 | 26 |
| 4 | 21 | 25 | 30 | 34 |
| 5 | 26 | 31 | 38 | 43 |
| 6 | 27 | 32 | 39 | 44 |
| 7 | 27 | 33 | 39 | 44 |
| 8 | 27 | 33 | 39 | 44 |
