G.I. pipe chemical gel earthing system

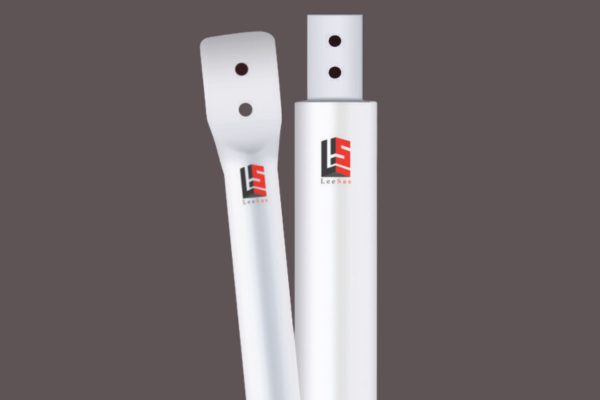

The core of “GPS” brand earthing electrode consists of the various constructions & designs listed below. The earthing electrodes are duly filled with a highly conductive and non-corrosive compound which safeguards the secondary electrode getting corrode over a long period of time under the soil. Also, the compound ensures the easy distribution of leakage/fault current lands on the electrode. Both the ends of the electrode are permanently sealed at both ends with the lead terminal at the top with 2 holes on the terminal for connecting to the load/equipment
DUAL PIPE EARTHING – GALVANIZED IRON
| Model / Part Number | Length (mm) | Outer Dia (mm) | Inner Dia (mm) | Terminal (mm) | Pipe |
|---|---|---|---|---|---|
| LS 150D | 1000 | 46-50 | 23-25 | 35×10 | G.I. |
| LS 250D | 2000 | 46-50 | 23-25 | 32×10 | G.I. |
| LS 350D | 3000 | 46-50 | 23-25 | 32×10 | G.I. |
| LS 180D | 1000 | 76-80 | 40-42 | 50×10 | G.I. |
| LS 280D | 2000 | 76-80 | 40-42 | 50×10 | G.I. |
| LS 380D | 3000 | 76-80 | 40-42 | 50×10 | G.I. |
| LS 3100D | 3000 | 110-114 | 47-50 | 75×10 | G.I. |
SINGLE PIPE EARTHING – GALVANIZED IRON
| Model / Part Number | Length (mm) | Outer Dia (mm) | Terminal (mm) | Pipe |
|---|---|---|---|---|
| LS 150GS | 1000 | 46-50 | 35×10 | G.I. |
| LS 250GS | 2000 | 46-50 | 32×10 | G.I. |
| LS 350GS | 3000 | 46-50 | 32×10 | G.I. |
| LS 180GS | 1000 | 76-80 | 50×10 | G.I. |
| LS 280GS | 2000 | 76-80 | 50×10 | G.I. |
| LS 380GS | 3000 | 76-80 | 50×10 | G.I. |
| LS 3100GS | 3000 | 110-114 | 75×10 | G.I. |
